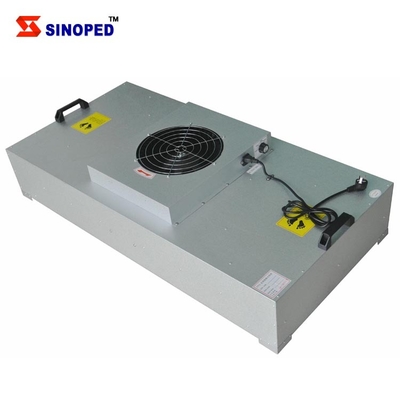

food & Beverage Factory Cleanroom FFU Fan Filter Hepa Unit Design FFU on Cleanroom Ceiling

1 Set
MOQ
food & Beverage Factory Cleanroom FFU Fan Filter Hepa Unit Design FFU on Cleanroom Ceiling
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Condition: New
Applicable Industries: Food & Beverage Factory, Construction works
Showroom Location: United States, Pakistan
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: other
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas, Video technical support
Plenum chamber material: Cold rolled steel with epoxy powder/ galvanized steel/ stainless steel
Average velocity(m/s): 0.3-0.5
Pressure(pa): 97(10mmAq)
Air flow: 900
Size: 1170*570mm
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: United States, Pakistan
Grundinformation
Zahlung und Versand AGB
Packaging Details: carton
Supply Ability: 100 Set/Sets per Month
Produkt-Beschreibung
Product Description
FFU can be used with modular linkage, and is widely used in the clean room with turbulent layer or laminar flow. It can be continuously run. And the air flow can reach to 0.45mm/s±20%. Long-life service, low noise, maintenance-free, small vibration, and adjustable speed. It can control thousands of units together. Before packing, it must pass the test according to the ISO14644-1 standard. The product is widely used in industries of semi-conductor, electronics, flat-panel screen, disc drive, optics and bio-engineering,etc. Customized design is available.
FFU Technical parameters
Model
SINO-920/1
SINO-1175/1
SINO-1225/1
SINO-875/1
Module size(W x L x Hmm)
920*615*250
1175*575*250
1225*615*250
875*575*250
Plenum chamber material
Cold rolled steel with epoxy powder/ galvanized steel/ stainless steel
Air flow(m³/h)
900
1000
1200
800
Average velocity(m/s)
0.3-0.5
0.3-0.5
0.3-0.5
0.3-0.5
Pressure(pa)
97(10mmAq)
97(10mmAq)
97(10mmAq)
97(10mmAq)
Power(W)
100
100
100
100
Weight(kg)
27.5
34
37.5
25
Noise dB
52
52
52
52



HEPA Filter
Size(W x H x Dmm)
915*610*69
1170*570*69
1220*610*69
870*570*69
Efficiency
99.99% 0.3μm
99.99% 0.3μm
99.99% 0.3μm
99.99% 0.3μm
Frame
High-quality aluminum
High-quality aluminum
High-quality aluminum
High-quality aluminum
Pressure
180pa 0.45m/s
180pa 0.45m/s
180pa 0.45m/s
180pa 0.45m/s
Characteristics
Patented no-gap technology to make PU gasket



Motor Parameter
Power supply(V/Hz)
220/50
220/50
220/50
220/50
Type
Aluminum turbine motor
Aluminum turbine motor
Aluminum turbine motor
Aluminum turbine motor
Vibration quotients(mm/s
0.2-0.5
0.2-0.5
0.2-0.5
0.2-0.5
There will no further notification if the appearance or parameters of our products are modified. Thanks.
